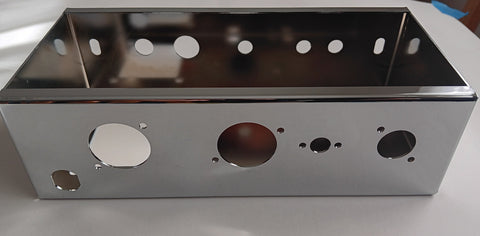

TWEED CHAMP 5F1 CHASSIS in CHROME, 18 ga.

NOW IN STOCK !

Great new chassis for 5F1 Tweed Champ.  Completely designed and engineered by Tube Audio Supply in the USA,  fabrication overseas.

MIRROR FINISHED CHROME (triple plating process,  copper/nickel/chrome)

18 ga.  stainless steel

LASER CUT HOLES,  LASER WELDED SIDE SEAMS

Engineered to fit USA standard amp parts and transformers

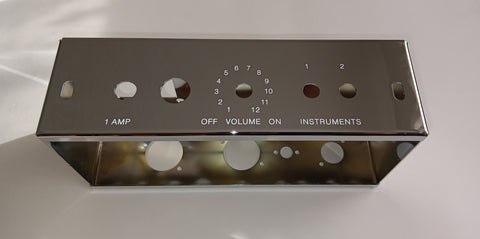

Special 2 part screen print ink with exceptional chemical and rub resistance

Octal holes are  1 3/16"  ( fits BELTON sockets as well as Ceramic )

9 PIN holes  are  3/4"

Correct  "double D"  shaped power cord grommet hole

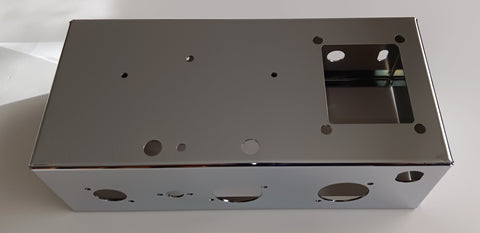

POWER Transformer mounting:  2" X 2 1/2"

OUPUT transformer mounting  2 3/8" center to center

EXTERIOR MEASURMENTS:  8 7/8" Long  x  2 3/4" deep  x  4 1/8" high

MOUNTING CENTERS:  7  13/16"



PLEASE NOTE:  The stainless steel construction makes drilling any holes more difficult than regular steel.  IF you are going to make any modifications to the chassis,  you MUST use a COBALT drill bit with lubricant and drill at slow speed with good pressure.   Drill at your own risk as the chrome might chip or peel.

NO RETURNS on any modified chassis.
